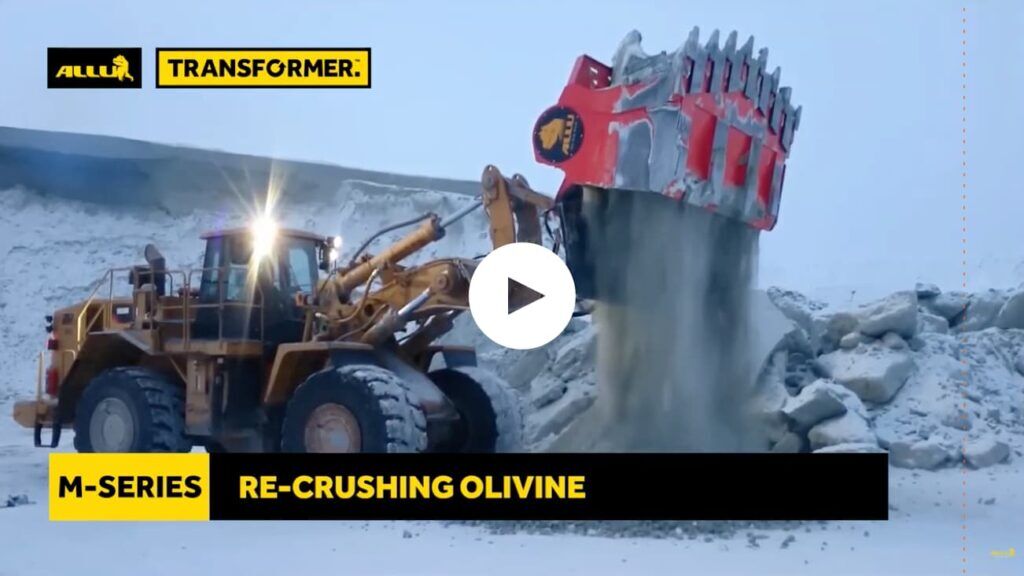

ALLU TRANSFORMER M-SERIES

CRUSH AND LOAD RAW MATERIAL IN A SINGLE STEP

The ALLU Transformer M Series is a range of multi-faceted screener crushers powered by the carrier they are mounted on. These hydraulic attachments help with quick and efficient material production in quarries or mining operations, solve chute blockages and other material flow problems, and transport frozen or saturated material heaps.

The ALLU M Series screener crushers transforms the carrier it is mounted on (loader or excavator) into a high capacity mobile crusher or screener. The Transformer M series attachment crushes the material, separates hard unwanted impurities in the rock mass, while loading the dump truck or conveyor system. This makes it ideal for the processing of soft rock and minerals, with the M series delivering simultaneous mobile crushing, separating, enrichment and loading.

M Series attachments provide an easy and very efficient solution when solving any problems in production or in the transportation of material heaps that are frozen in winter or clogged up because of moisture.

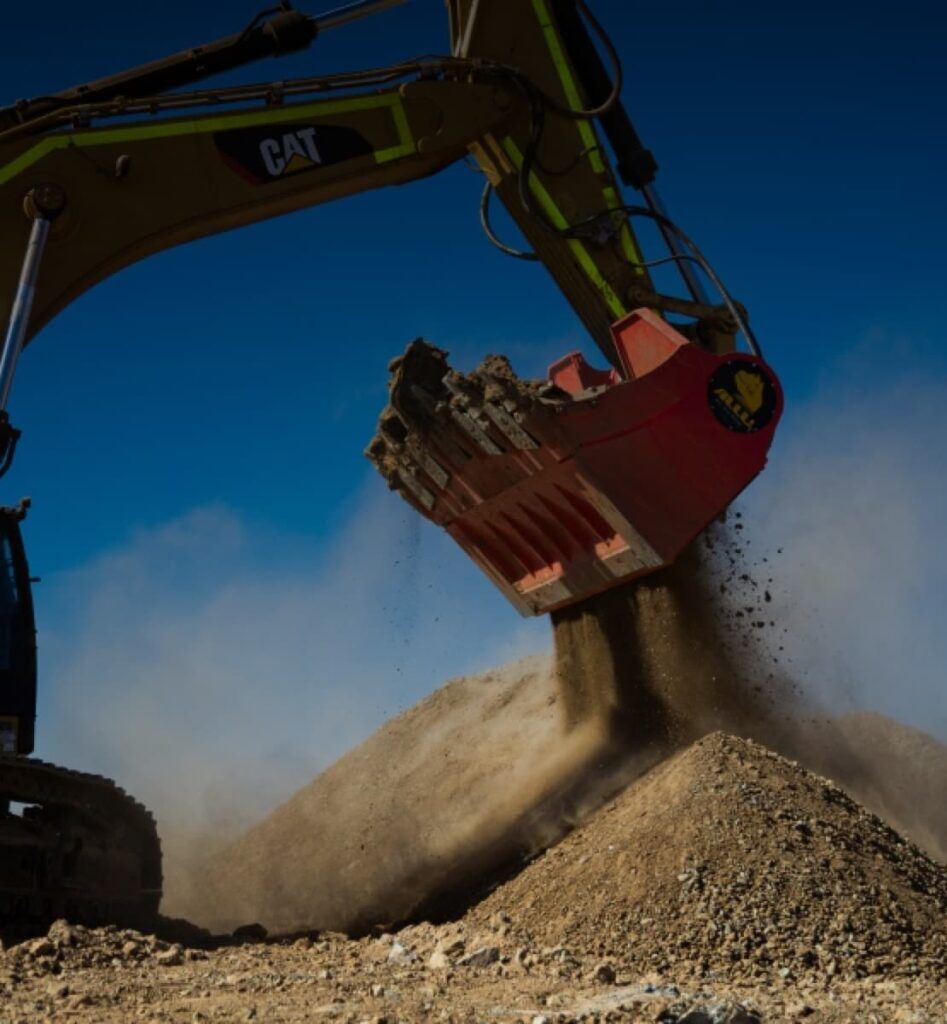

FOR EXCAVATORS

50-160 t operating weight

MINING/INDUSTRIAL
OPERATIONS

ALLU M Series mounted on an excavator is recommended for primary work in the mines, because of work speed and reach which results in almost double the processing capacity compared to a slow moving wheel loader as carrier.

	M 3-20	M 3-25	M 4-25
CARRIER	50-70 t	70-120 t	120-160 t
VOLUME	2,82 – 3,86 m³	3,64 – 5,00 m³	5,00 – 8,67 m³
WEIGHT	7000 – 8000 kg	9000 – 11000kg	11000 – 14000 kg
MAX. PRESSURE	350 bar	350 bar	350 bar
OIL FLOW	300-440 L/Min	300-440 L/Min	300-440 L/Min

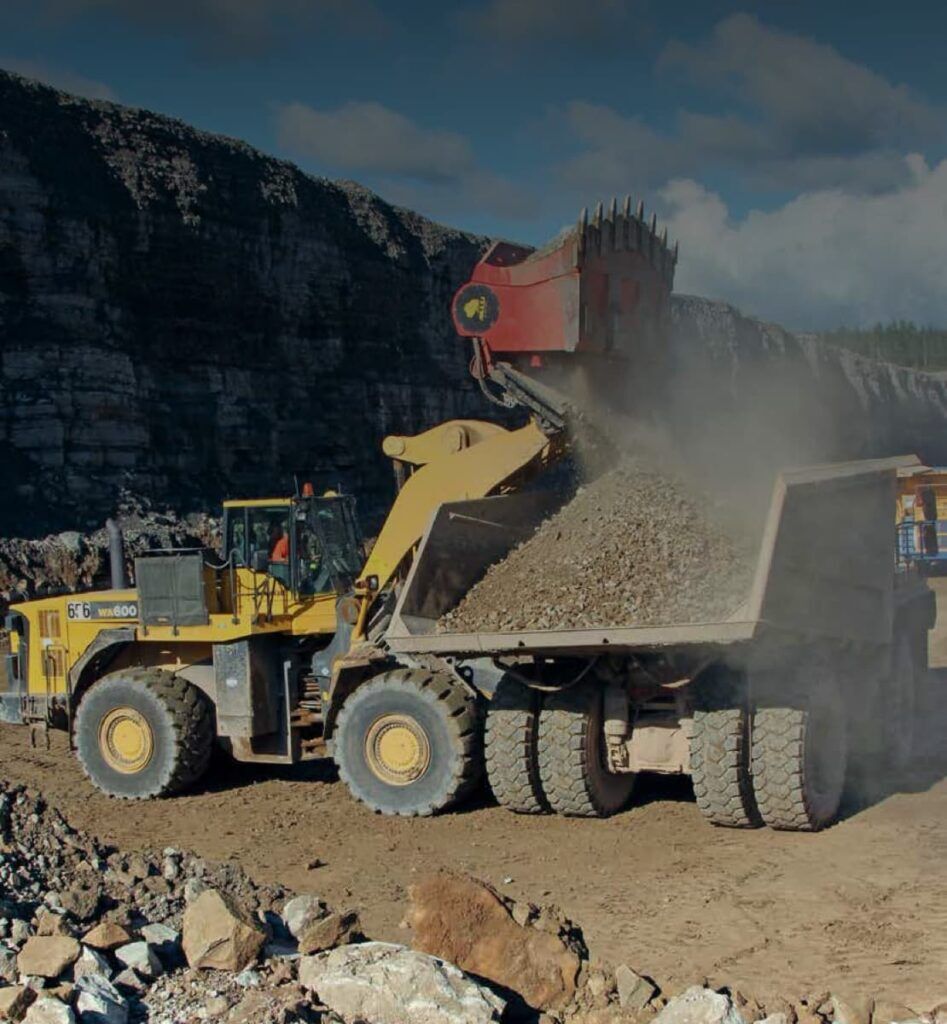

FOR WHEEL LOADERS

30-90 t operating weight

SECONDARY OPERATIONS

ALLU M Series mounted on wheel loaders are recommended for secondary and service work such as at harbours, power plants and storage areas, due to the mobility of the equipment.

	M 3-26	M 3-32
CARRIER	30-50 t	50-70 t
VOLUME	4,00 m³	4,60 m³
WEIGHT	8000 – 11000kg	10500 -13500 kg
CAPACITY	250 t/h	350 t/h
MAX. PRESSURE	350 Bar	350 Bar
OIL FLOW	300-440 L/Min	300-440 L/Min

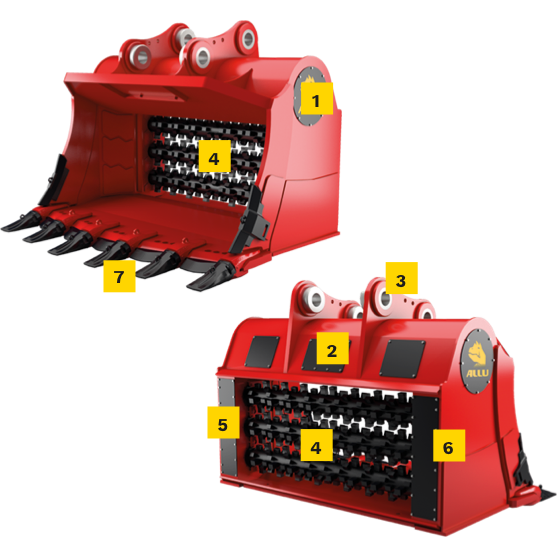

M-Series Features

For Wheel loader

For Excavator

1. Hydraulic motor x2
Displacement: 2x 1,400 cm3
Power: 2x 70kW
Max. Torque: 14,000 Nm
2. Power Control Valve

3. Pin mount adaptation and bushings
4. Rotating crushing drums
5. Patented rear-mounted bearing + drum construction
6. Heavy duty chain drive
7. Changeable wear parts

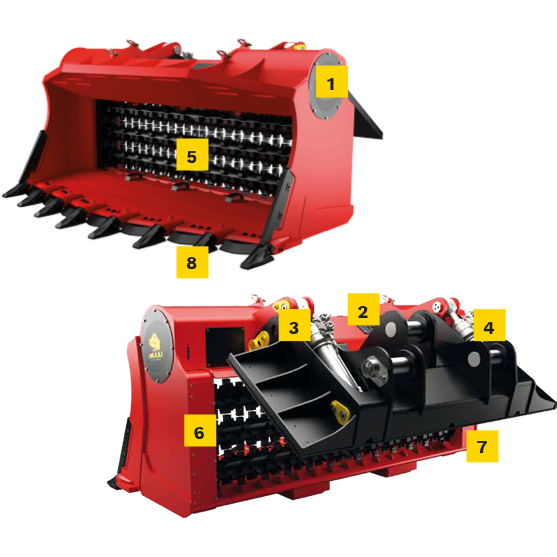

UNIQUE DESIGN FOR BULK AND MINING MATERIAL HANDLING.

1. Hydraulic motor x2
Displacement: 2x 1,400 cm3
Power: 2x 70kW
Max. Torque: 14,000 Nm
2. Power Control Valve
3. Cylinder Force: 100t

4. Hydraulically operated hinged rear lid/adapter
5. Rotating crushing drums
6. Patented rear-mounted bearing + drum construction
7. Heavy duty chain drive
8. Changeable wear parts
